Products
Top mount 6 laterals
[BACK]

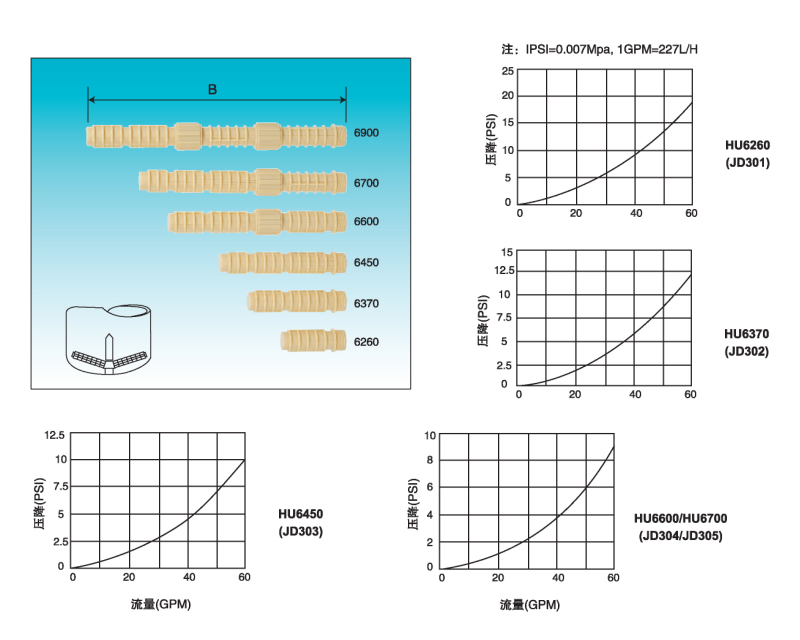

Product Details
| Serial No. | Item No. | SIZE (mm) | Diameter(inches/mm) | Slot Size | Top opening | ||||
| A | B | C | D | E | |||||
| JD301 |
HU6260
|
253 | 98 | 35 | 48.5/50/42/40 | 85 | 12"～16" (Φ300～Φ400) | 0.25~0.3MM | 4"～8"THREAD |
| JD302 | HU6370 | 350 | 153 | 35 | 48.5/50/42/40 | 100 | 18"～21" (Φ450～Φ550) | 0.25~0.3MM | 4"～8"THREAD |
| JD303 | HU6450 | 445 | 200 | 35 | 48.5/50/42/40 | 110 | 24" (Φ600) | 0.25~0.3MM | 4"～8"THREAD |
| JD304 | HU6600 | 590 | 281 | 35 | 48.5/50/42/40 | 132 | 30" (Φ750) | 0.25~0.3MM | 4"～8"THREAD |
| JD305 | HU6700 | 680 | 327 | 35 | 48.5/50/42/40 | 145 | 36" (Φ900) | 0.25~0.3MM | 4"～8"THREAD |
| JD330 | HU6900 | 835 | 406 | 35 | 48.5/50/42/40 | 165 | 40" (Φ1000) | 0.25~0.3MM | 4"～8"THREAD |
