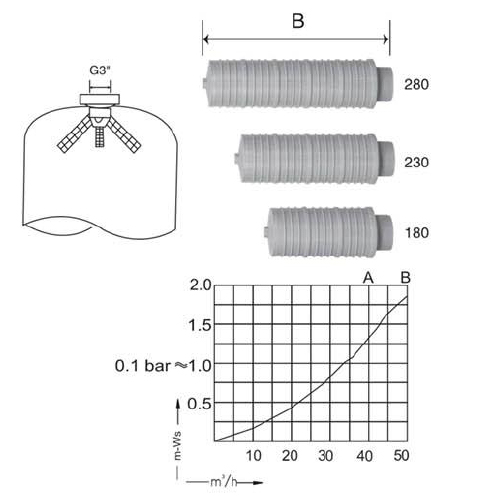

Top mount 3 laterals diffuser 6”flange
[返回]
详细信息
| Serial No. | Item No. | SIZE (mm) | Connector size | Diameter(inches/mm) | Top opening | |||||
| A | B | C | D | E | Slot Size | |||||
| JD432A | SS-8-180AF | 400 | 180 | 85 | 433 | 255 | 0.8mm | Φ90(Φ89) | 36"~48" (Φ900~Φ1200mm) | 6"FLG |
| JD433A | SS-8-230AF | 495 | 230 | 85 | 447 | 255 | 0.8mm | Φ90(Φ89) | 48"~65" (Φ1200~Φ1600mm) | 6"FLG |
| JD434A | SS-8-280AF | 570 | 280 | 85 | 460 | 255 | 0.8mm | Φ90(Φ89) | 65"~80" (Φ1600~Φ2000mm) | 6"FLG |
